Technical Ledger

Our Equipment Catalogue

A classed, maintained fleet spanning dredging and floating crane disciplines. Every asset listed with full technical specification — no confidential identifiers exposed by policy.

Jump to01Floating Cranes 02Dredgers

Asset Class

Floating Cranes

02 Units

ARK Unit 01

Available for charterUnit 01

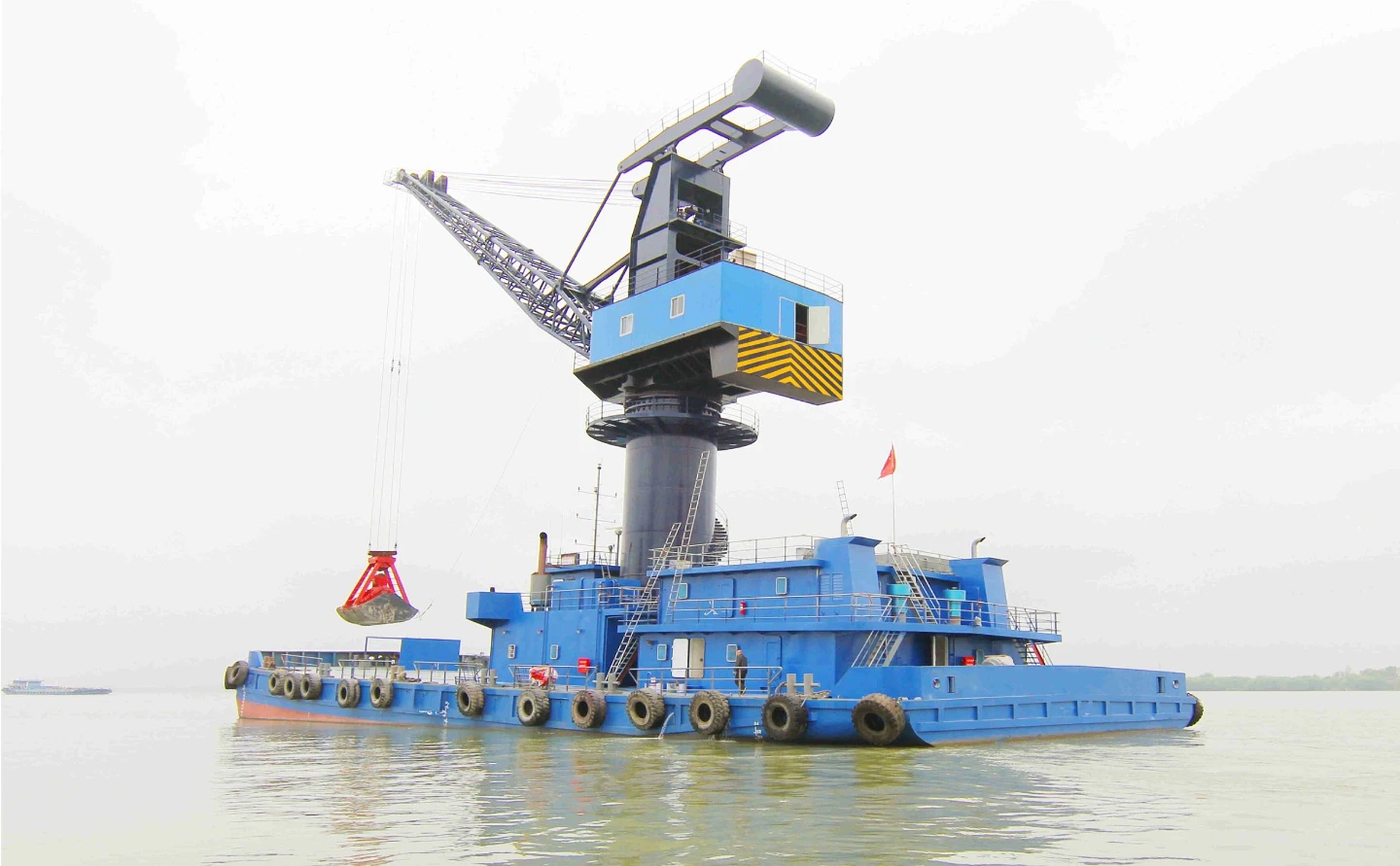

Floating Crane

Diesel floating crane · 2019 build

Diesel floating crane for coal transshipment and heavy-lift loading, delivering a high loading rate of up to 20,000 tons per day.

Type: Floating Crane
Year of Build: 2019
Flag: Indonesia
Port of Registry: Jakarta
Hull Material: Steel
Main Engine: Diesel — ZICHAI Z8170ZLC-7
Horse Power: 218 × 2 kW
Speed: 5 Knots
L.O.A: 49.50 m
Length: 47.50 m
Breadth: 18.60 m
Depth: 3.20 m
Draft: 1.50 m
Gross Tonnage: 1,274 Tons
Net Tonnage: 383
Loading Rate: 28 m³ per cycle
Daily Capacity: Up to 20,000 tons/day

Applications

·Coal transshipment
·Heavy-lift loading
·Jetty & anchorage ops
·Multi-purpose loading

Key Features

·High daily loading rate
·Hook & grab capability
·Steel hull construction
·Diesel main engine

Request Technical Brief

ARK Unit 02

Available for charterUnit 02

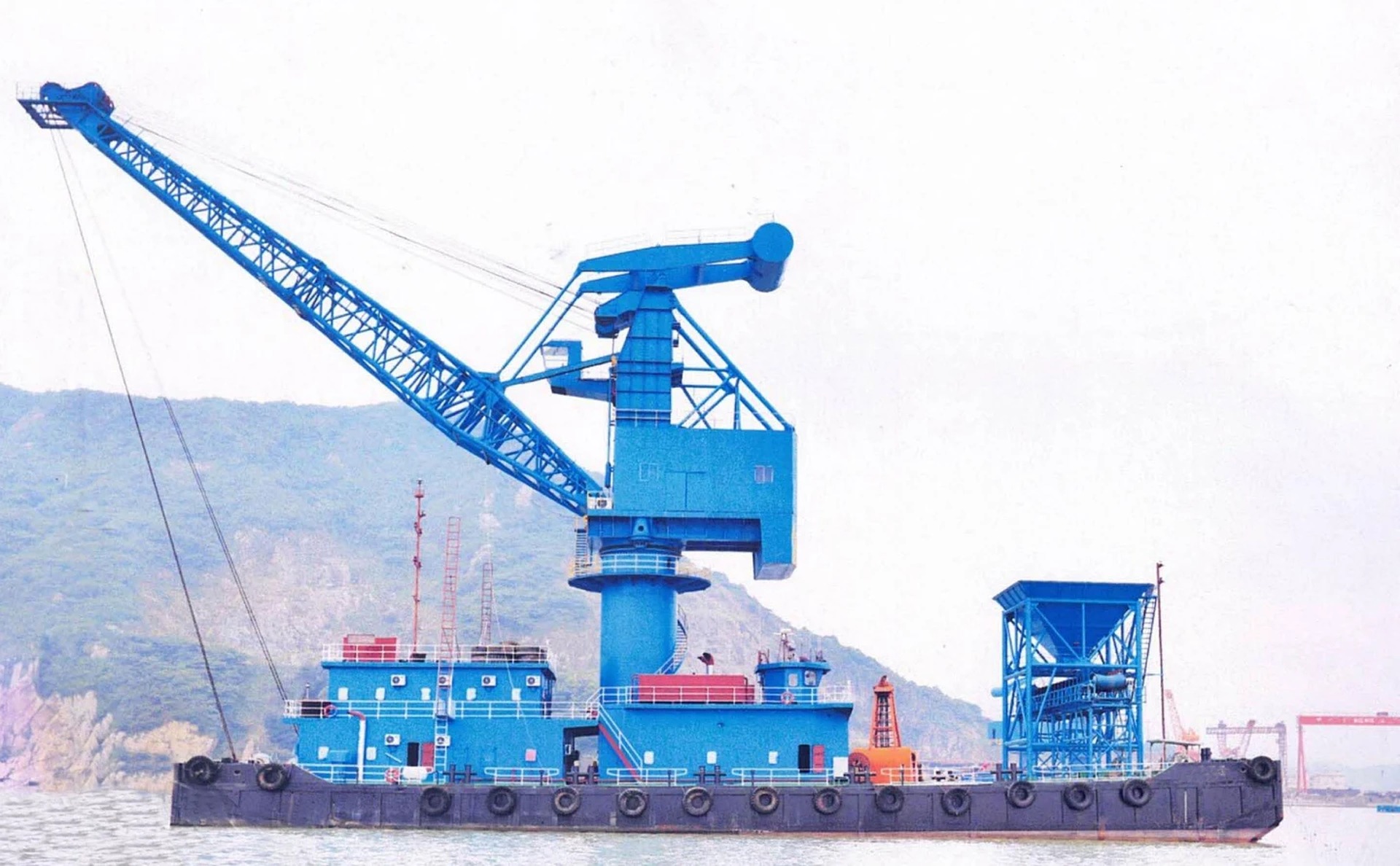

Floating Crane

BKI-classed floating crane · 2020 build

BKI-classed diesel floating crane with twin WEICHAI propulsion, delivering a high loading rate of up to 28,000 tons per day.

Type: Floating Crane
Year of Build: 2020
Flag: Indonesia
Port of Registry: Samarinda
Class: BKI
Hull Material: Steel
Main Engine: WEICHAI 2 × 601 kW
Power / RPM: 601 kW @ 1350 RPM
Aux Engine: HUAFA R4105ZD / SHANDONG WR6105ZCD
L.O.A: 56.10 m
Length: 54.61 m
Breadth: 19.80 m
Depth: 3.60 m
Gross Tonnage: 1,488 Tons
Net Tonnage: 447 Tons
Crew: 10 Persons
Loading Rate: 38 m³ per cycle
Daily Capacity: Up to 28,000 tons/day

Applications

·Coal transshipment
·Heavy-lift loading
·Mother-vessel loading
·Anchorage transshipment

Key Features

·BKI classed
·Twin WEICHAI propulsion
·High daily capacity
·10-person crew

Request Technical Brief

Asset Class

Dredgers

05 Units

ARK Unit 01

Available for charterUnit 01

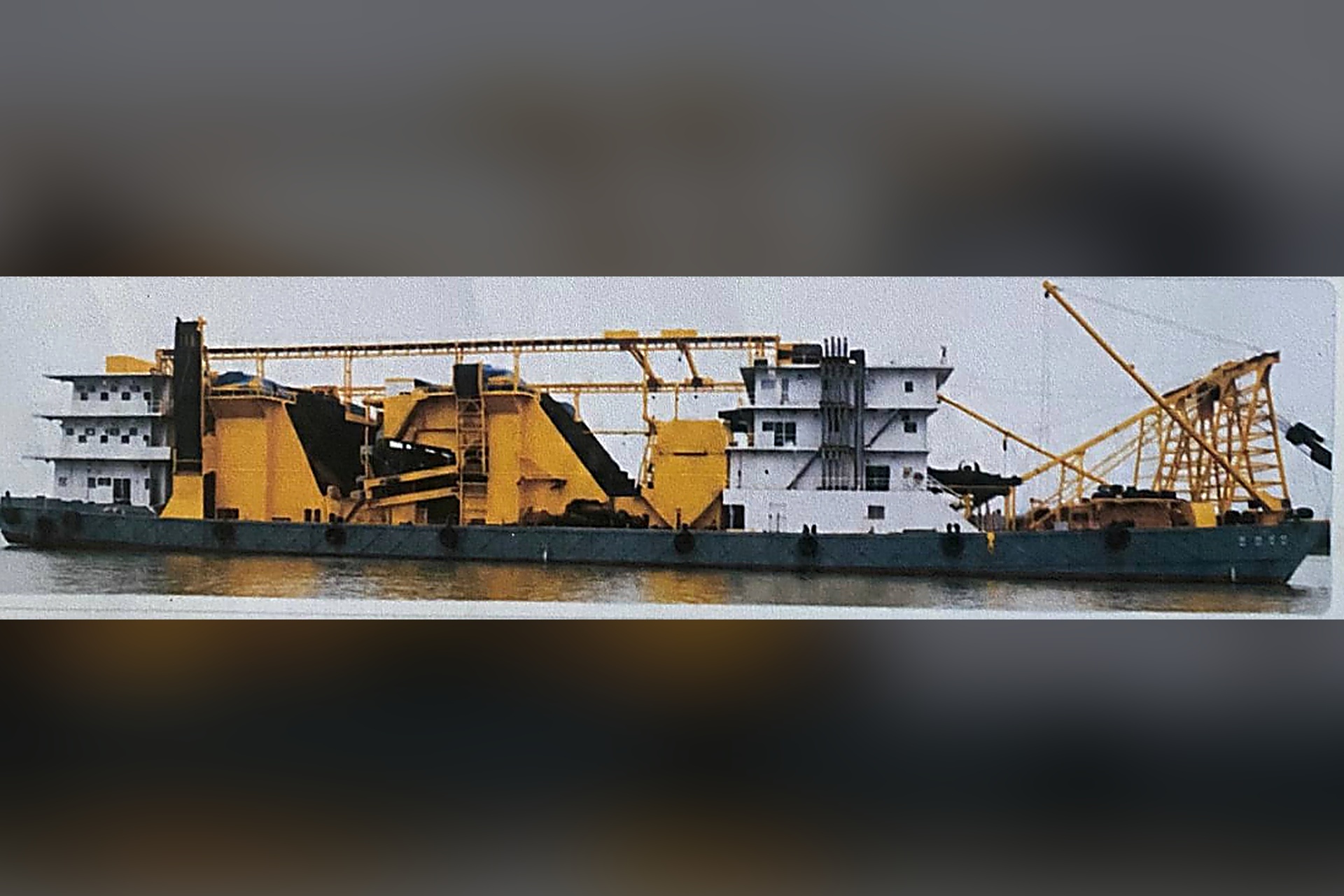

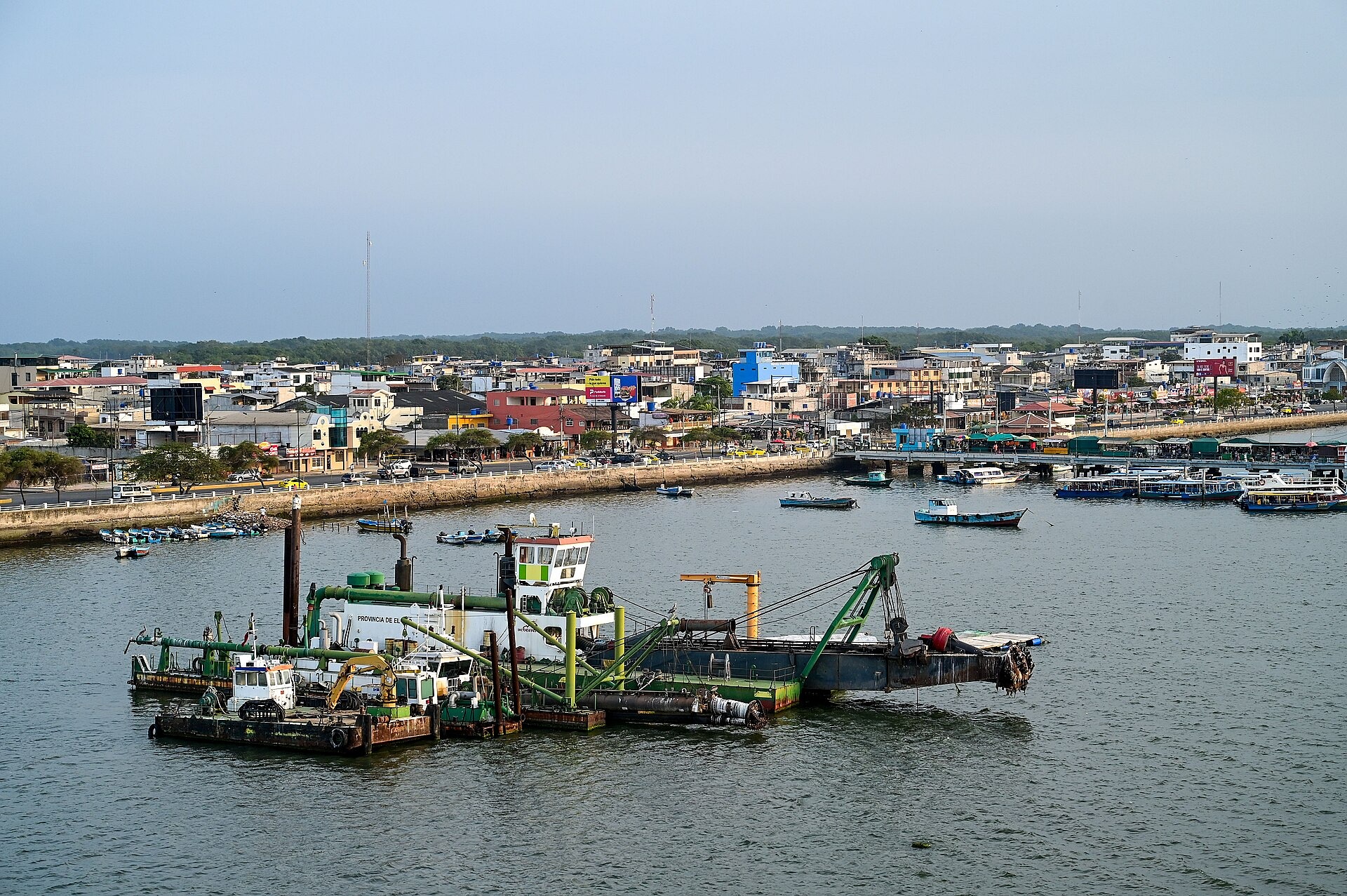

Cutter Suction Dredger (CSD)

3,500 m³/h · 900 kW

Cutter suction dredger delivering 3,500 m³ per hour production capacity, powered by a 900 kW main engine for jetty and channel dredging.

Type: Cutter Suction Dredger (CSD)
Gross Tonnage: 2,461
Net Tonnage: 738
Length: 97.00 m
Breadth: 18.20 m
Depth: 5.20 m
Design Draft: 3.50 m
Production Capacity: 3,500 m³/hour
Main Engine Power: 900 kW

Applications

·Jetty maintenance
·Approach channel dredging
·Anchorage deepening
·Basin re-profiling

Key Features

·High performance
·Reliable equipment
·Environmental compliance
·Experienced crew

Request Technical Brief

ARK Unit 02

Available for charterUnit 02

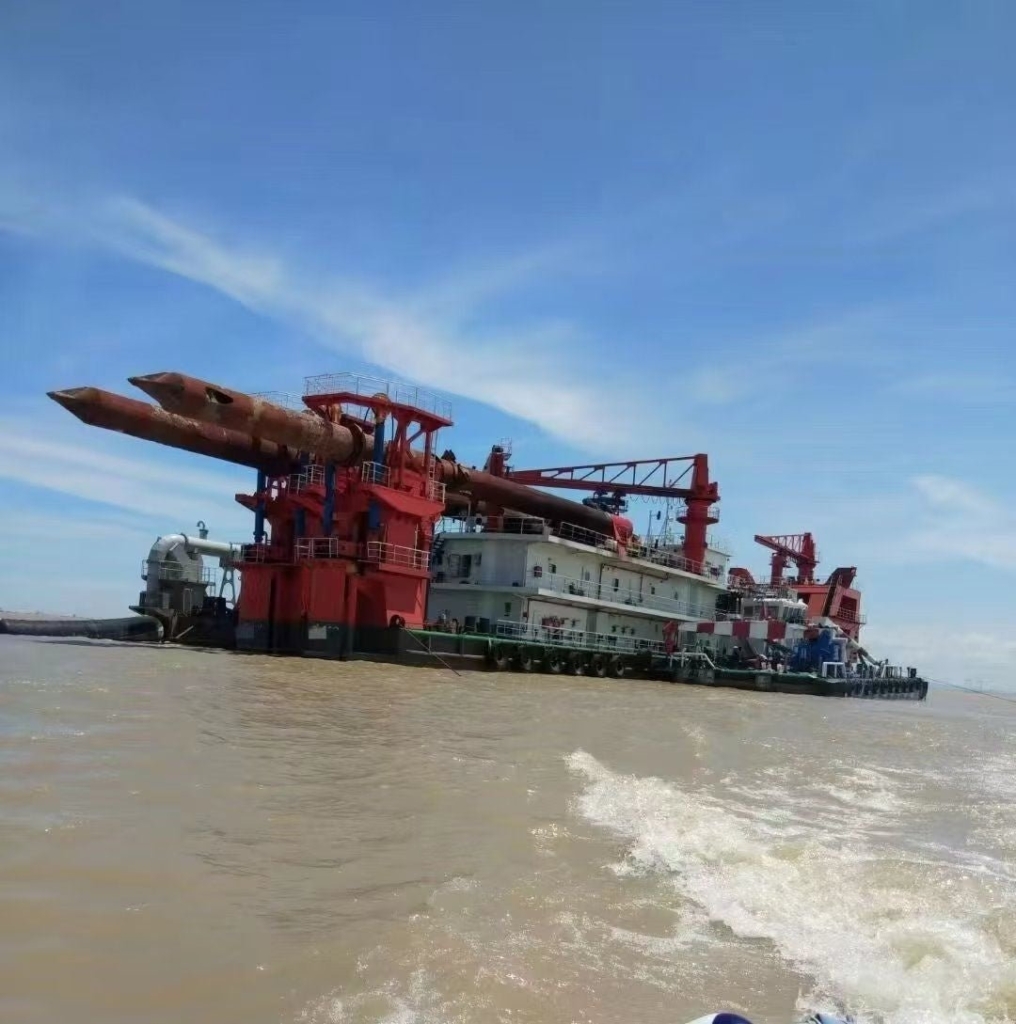

Cutter Suction Dredger (CSD)

4,500 m³/h · 1,194 kW

Cutter suction dredger with 4,500 m³ per hour production capacity and a 1,194 kW main engine — built for large-scale port deepening and reclamation works.

Type: Cutter Suction Dredger (CSD)
Gross Tonnage: 5,476
Net Tonnage: 1,642
Length: 102.80 m
Breadth: 22.00 m
Depth: 5.38 m
Design Draft: 2.50 m
Production Capacity: 4,500 m³ per hour
Dredging Type: Cutter Suction Dredger
Main Engine Power: 1,194 kW

Applications

·Large-scale dredging
·Port deepening
·Reclamation projects
·Channel deepening

Key Features

·High performance
·Reliable equipment
·Environmental compliance
·Experienced crew

Request Technical Brief

ARK Unit 03

Available for charterUnit 03

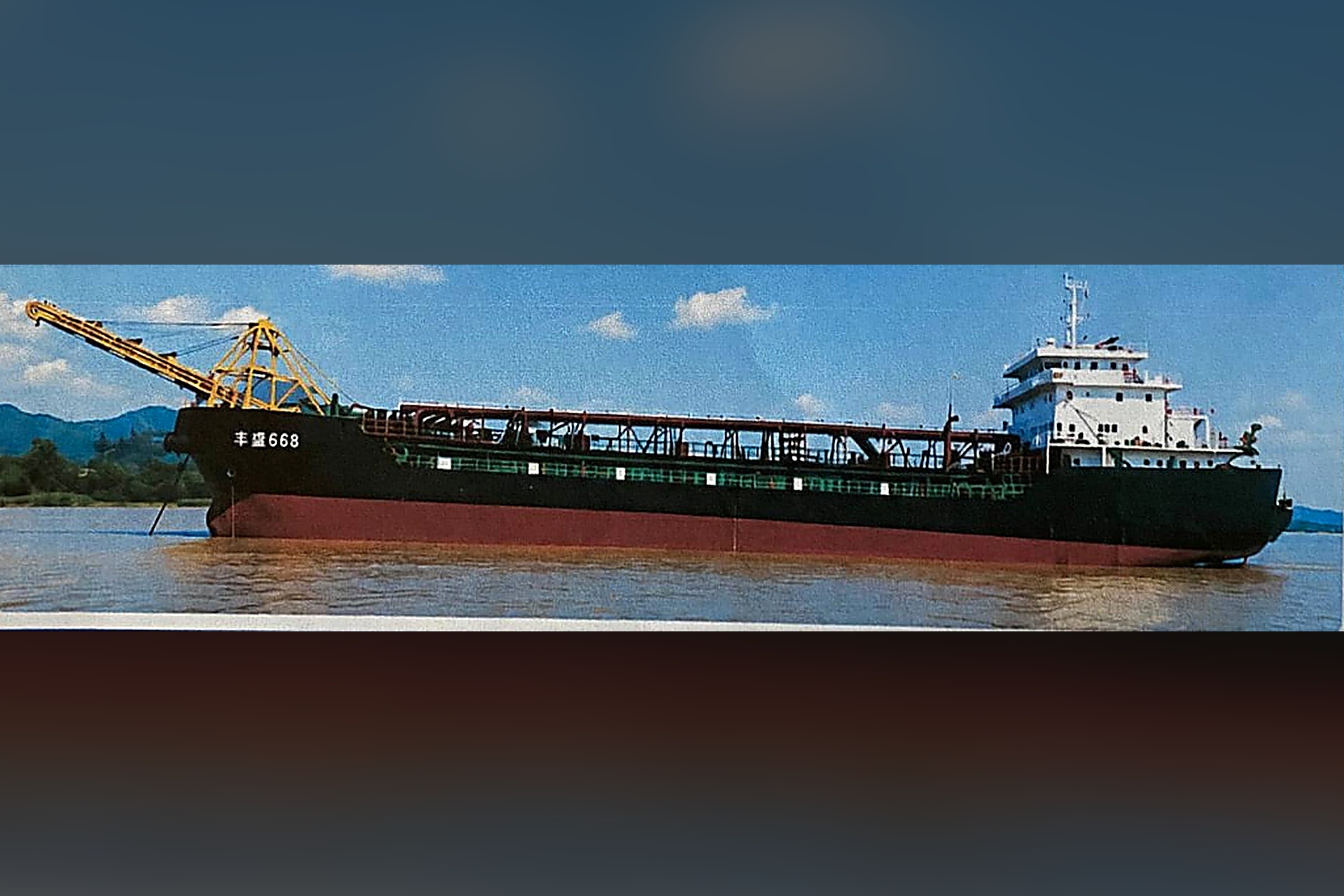

Trailing Suction Hopper Dredger (TSHD)

Self-propelled · approx. 6,358 t hopper

Self-propelled trailing suction hopper dredger with an approximate 6,358-ton hopper capacity — self-loading and self-discharging for sand mining, reclamation fill, and marine aggregate transport.

Type: Self-Propelled Trailing Suction Hopper Dredger (TSHD)
Built Year: 2020
Gross Tonnage: 6,744
Net Tonnage: 3,776
Flag: China
L.O.A: 111.88 m
Breadth: 22.00 m
Depth: 7.60 m
Full Load Draft: 5.10 m
Dredging Type: Trailing Suction Hopper Dredger (TSHD)
Hopper Capacity: Approx. 6,358 t
Material: Sand / Reclamation Fill Material
Operation: Self-Loading & Self-Discharging

Applications

·Seabed sand extraction
·Reclamation filling
·Marine aggregate transport
·Dredging

Key Features

·High productivity
·Self-propelled (no towing required)
·Large hopper capacity
·Versatile operation

Request Technical Brief

ARK Unit 04

Available for charterUnit 04

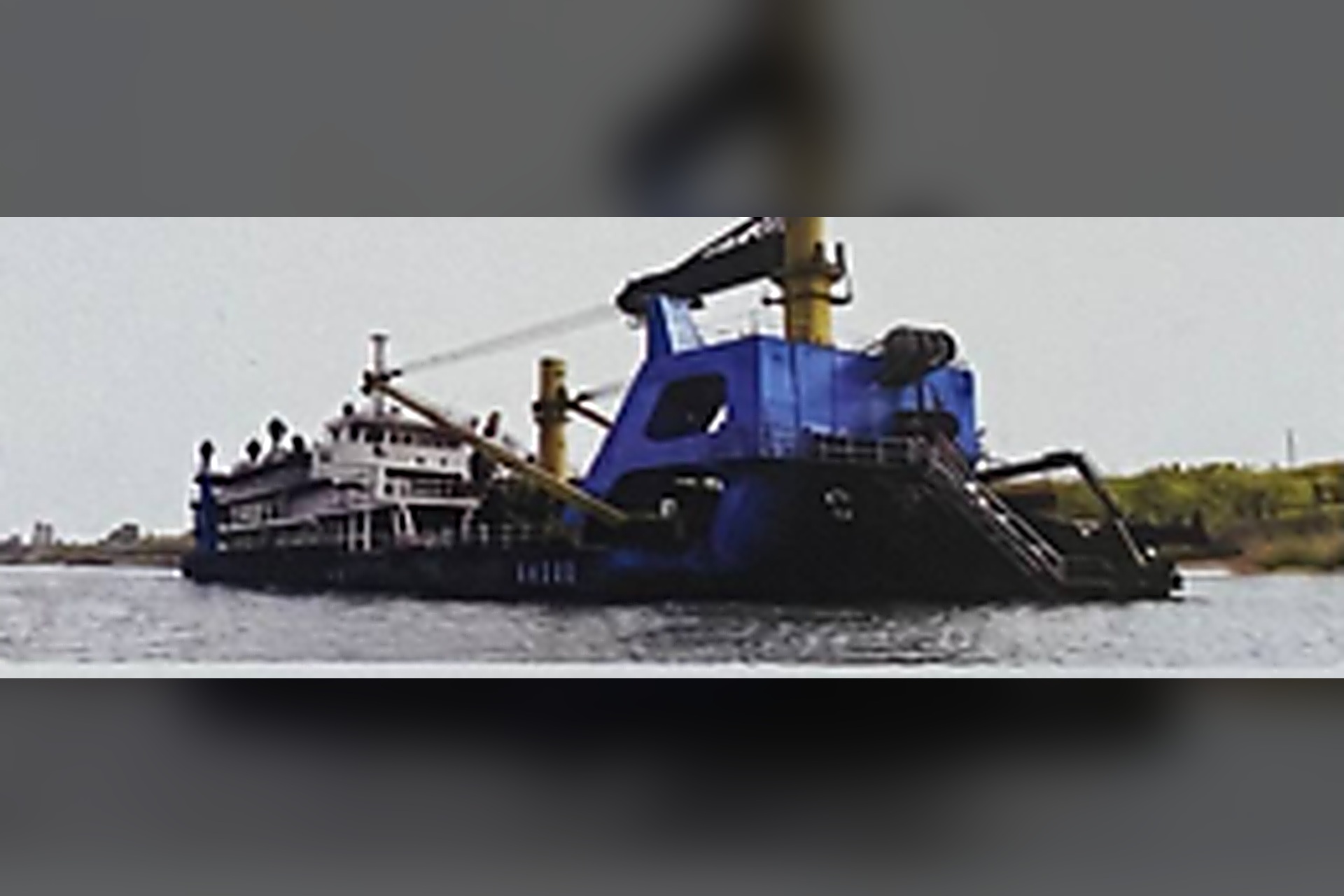

Cutter Suction Dredger (CSAD)

4,500 m³/h · 102.30 m

Cutter suction dredger with 4,500 m³ per hour work capacity and a 2–3 kilometre discharge/transport distance — suited to sustained channel and basin dredging campaigns.

Type: Cutter Suction Dredger (CSAD)
Gross Tonnage: 2,900
Net Tonnage: 870
Length: 102.30 m
Breadth: 19.20 m
Depth: 5.20 m
Design Draft: –
Work Capacity: 4,500 m³ per hour
Dredging Type: Cutter Suction Dredger
Discharge / Transport Distance: 2–3 kilometers

Applications

·Channel dredging
·Basin re-profiling
·Port maintenance
·Reclamation supply

Key Features

·4,500 m³/h work capacity
·2–3 km discharge distance
·Reliable equipment
·Experienced crew

Request Technical Brief

ARK Unit 05

Available for charterUnit 05

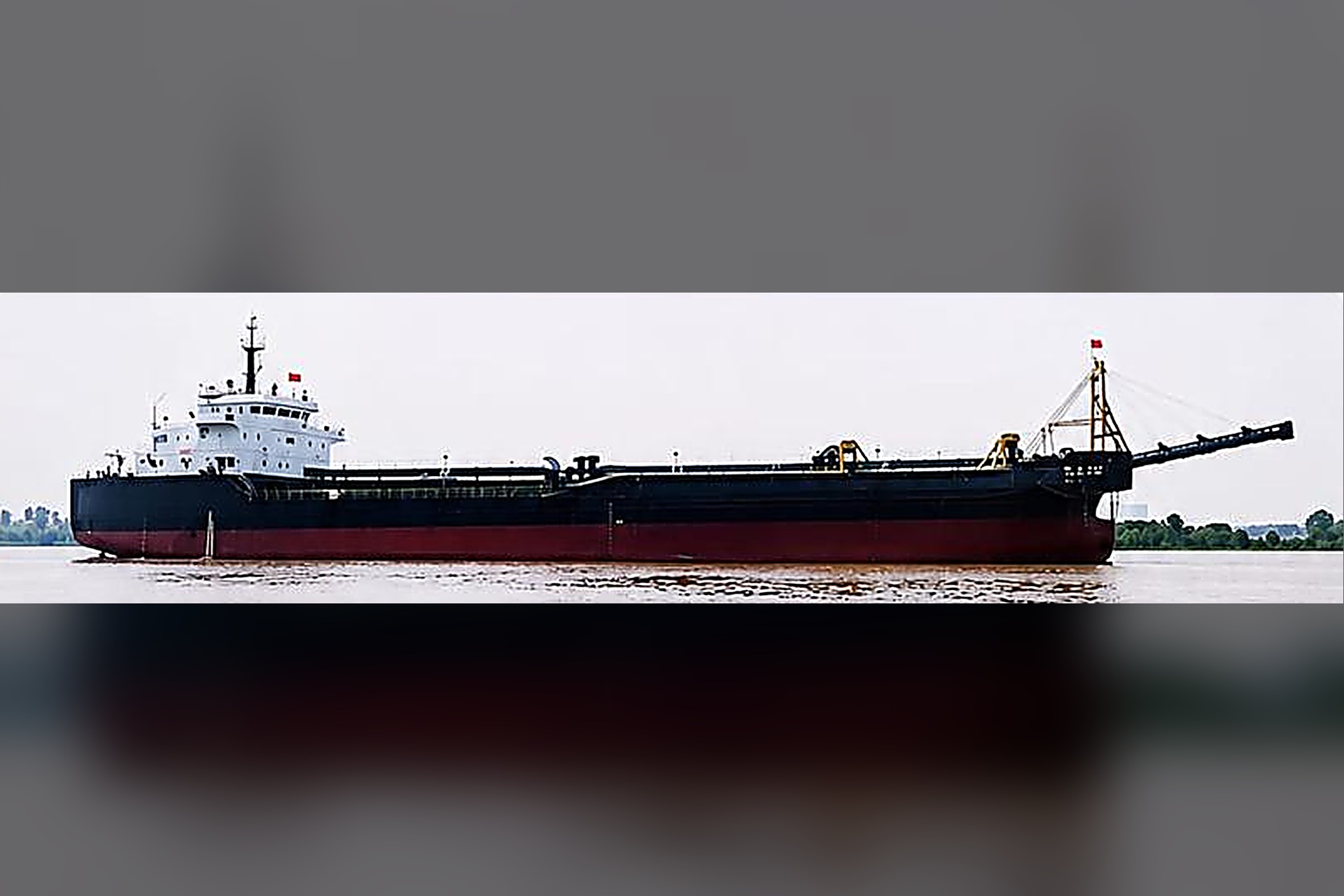

Trailing Suction Hopper Dredger (TSHD)

Self-propelled · 8,553 GT · 2017 build

Self-propelled trailing suction hopper dredger designed for coastal dredging, sand extraction, and reclamation works — carrying and transporting large volumes of dredged material without towing support.

Type: Self-Propelled Trailing Suction Hopper Dredger (TSHD) / Dredger
Gross Tonnage: 8,553 GT
Net Tonnage: 2,656 NT
Built Year: 2017
Length Overall (LOA): 130.32 m
Breadth: 22.00 m
Depth: 8.50 m
Draft: 5.90 m
Dredging Type: Trailing Suction Hopper Dredger (TSHD)
Operation: Coastal dredging / self-propelled
Material: Sand, reclamation fill material (typical)

Applications

·Coastal dredging
·Seabed sand extraction
·Reclamation filling
·Marine aggregate transport

Key Features

·High productivity
·Self-propelled
·Suitable for coastal dredging operations
·Designed for sand extraction and reclamation works

Request Technical Brief

Need a tailored fleet configuration?

We assemble multi-asset packages — dredger, barges, and tugs — under flexible Time, Bareboat, or Voyage charter terms. Tell us your scope and throughput targets.

Request a Custom Quote
